Automatic Tube Mill with High Frequency Welding 80m/min

Name: Automatic Tube Mill with High Frequency Welding 80m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG114
Price: 50,000.00 USD
Availability: InStock

Detalles del producto:

Lugar de origen:	hebei
Nombre de la marca:	TengTian
Certificación:	CE, ISO9001, BV
Número de modelo:	HG114

Información Detallada

Lugar de origen:

hebei

Nombre de la marca:

TengTian

Certificación:

CE, ISO9001, BV

Número de modelo:

HG114

Nombre del producto:

Molino de tubos automático con soldadura de alta frecuencia 80 m/min

Período de garantía:

1 año

Período de producción:

4 meses

Método de formación:

Apretón

Método de soldadura:

Soldadura de inducción de alta frecuencia

Velocidad:

80 m/min

Garantía:

un año

Material:

HRC bajo en carbono

Tipo de formación:

formación directa

Taller:

120 x 10 m, H> 7 m (grúa a tierra)

Palabras clave:

Fábrica de tubos automático

Resaltar:

High Light

Resaltar:

Automatic Tube Mill with high frequency welding

High speed tube mill 80m/min

Automatic Tube Mill with warranty

Información Comercial

Cantidad de orden mínima:

1 juego

Precio:

$100000 to $1 million

Detalles de empaquetado:

Exportación de embalaje impermeable y marinero.

Tiempo de entrega:

120 días laborables

Condiciones de pago:

LC, T/T

Capacidad de la fuente:

50 juegos/año

Descripción del Producto

Automatic Tube Mill with High Frequency Welding 80m/min

Product Specifications

Attribute	Value
Product name	Full automatic tube mill
Warranty period	1 year
Production period	4 months
Forming method	Roller Squeeze
Welding method	High frequency induction welding
Speed	80 m/min
Material	Low carbon HRC
Forming type	Direct forming
Work shop	120 x 10 m, H＞7m (crane to ground)

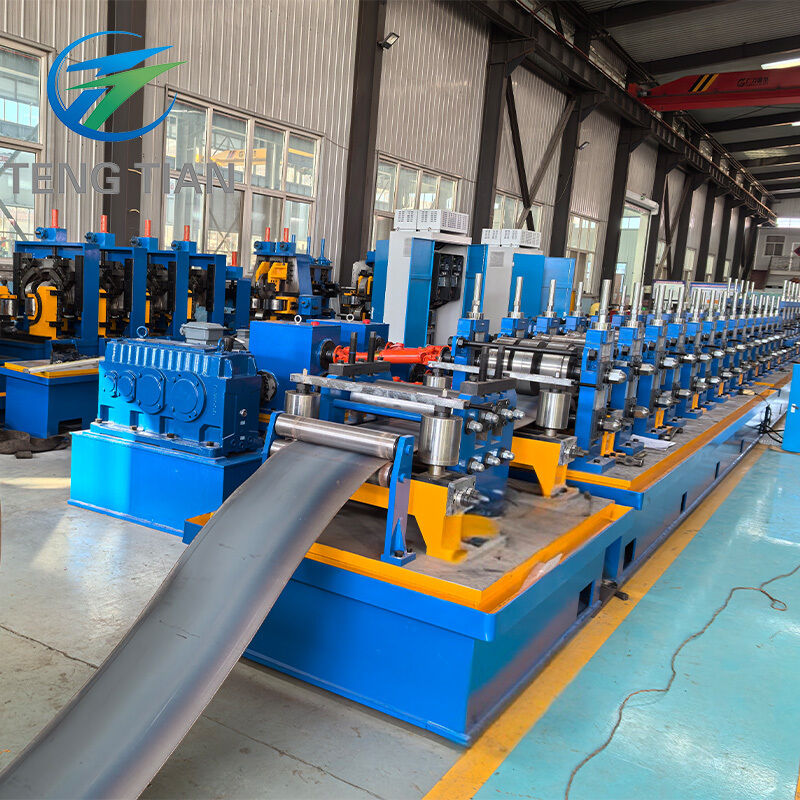

Automatic Tube Mill with High Frequency Welding 80m/min 0

Product Overview

The high frequency straight seam welded pipe production line processes steel belt through a feeding unit, forming it into tube billets via rollers. Using high frequency proximity and skin effects, the strip edges are instantly heated to welding temperature and joined under pressure from squeezing rollers. The welded pipe then undergoes water cooling, sizing, and straightening to meet required specifications.

This production line incorporates innovative designs based on domestic and international equipment, optimized for operational simplicity and maintenance ease. With high machining quality and assembly precision, it produces electric welded steel pipes with exceptional accuracy.

Production Process

Technical Specifications

Model	Side Length Range	Thickness	Production Speed (m/min)	Motor Power (KW)	Mechanical Area (m³)
HG20	6×6 - 16×16 mm	0.3-1 mm	30-120	55	7×50
HG32	9×9 - 25×25 mm	0.3-2.0 mm	30-120	75	7×50
HG50	12×12 - 40×40 mm	0.8-2.5 mm	30-110	110	7×60
HG60	15×15 - 47×47 mm	0.8-3 mm	30-100	132	7×65
HG76	9×9 - 60×60 mm	1-3 mm	30-100	320	8×80
HG89	25×25 - 70×70 mm	1-4 mm	30-80	350	8×80
HG114	35×35 - 89×89 mm	1.5-5.0 mm	30-60	400	10×100
HG165	47×47 - 129×129 mm	3-7 mm	30-50	600	10×110
HG219	89×89 - 172×172 mm	4-8 mm	20-40	800	12×150
HG273	89×89 - 214×214 mm	4-10 mm	15-30	1000	18×160
HG325	129×129 - 255×255 mm	4-12 mm	10-30	1200	18×180
HG426	129×129 - 335×335 mm	4-16 mm	8-25	1400	18×180
HG508	172×172 - 400×400 mm	4-20 mm	8-20	2000	21×180

Recent technology expansion includes:

HG600: Production line for square welded pipes (max side length 600×600mm)
HG765: Production line for round welded pipes (max diameter 765mm)

Quality Assurance & Service Warranty

Pre-sales Service

Equipment photos provided before shipment to verify product authenticity
COVID-19 contingency: Online remote guidance for installation and commissioning when travel restrictions apply
When travel permitted: On-site engineer support for one month (buyer covers travel, accommodation, and salary)

After-sales Service

Under normal operation and proper maintenance, we provide 12 months warranty from equipment arrival date. For quality-related part failures affecting operation, we offer free repairs or replacements.
