144mm And 4.5" ERW Tube Mill Machine International Standard
| Attribute |
Value |
| Machine Name |
Tube Mill Machine |
| Product |
Round pipe |
| Feature |
Precision |
| Material |
Carbon steel and galvanized steel |
| Other pipe |
Square pipe |
| Max size |
114mm |
| Thickness |
3mm |
| Length |
3-6m |
| Rollers |
Not included |
| Model |
114 |
Product Description
The HG114 Automatic Tube Mill is designed to produce square pipes from 50-114mm and corresponding size round pipes with thickness ranging from 1-3mm. Utilizing advanced roll pass design, this production line manufactures welded steel pipes with superior quality machining and high precision assembly.
Key Features
- Double-radius hole style design for improved efficiency
- Optimized for both operating characteristics and safety
- Reduced roller cost while maintaining high productivity
- Precision manufacturing for consistent quality output
Technical Specifications
Material Specifications:
Standard: International standard tube mill machine
Material: Galvanized steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 150-360mm
Strip Thickness: 1-3mm
Inner Diameter of Coils: Φ508mm
Outer Diameter of Coils: Φ1300～φ2000mm
Coil Weight: ≤4T
Pipe Specifications:
Pipe Diameter: Round pipe 50-114mm
Length: 3-6m
Pipe-cutting Precision: 0-6mm
Forming Speed: Max 90m/min for 2mm thickness
Buyer-Supplied Requirements:
Workshop: 60x12m, H＞5m (crane to ground)
Power: Approx. 3500KW 380V/60Hz/3phases
Circulation Cooling Water: Flow:30+30 CBM, Pool Volume:40m³
Compressed Air: Flow:5m³/min, Pressure: 5-7kg/cm²
Cable: All cable outside of machine to be supplied by buyer after installation
Working Process
Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Forming, welding, cooling, accurate pipe diameter sizing
Accurate pipe length sizing and cutting
Inspection
Packaging

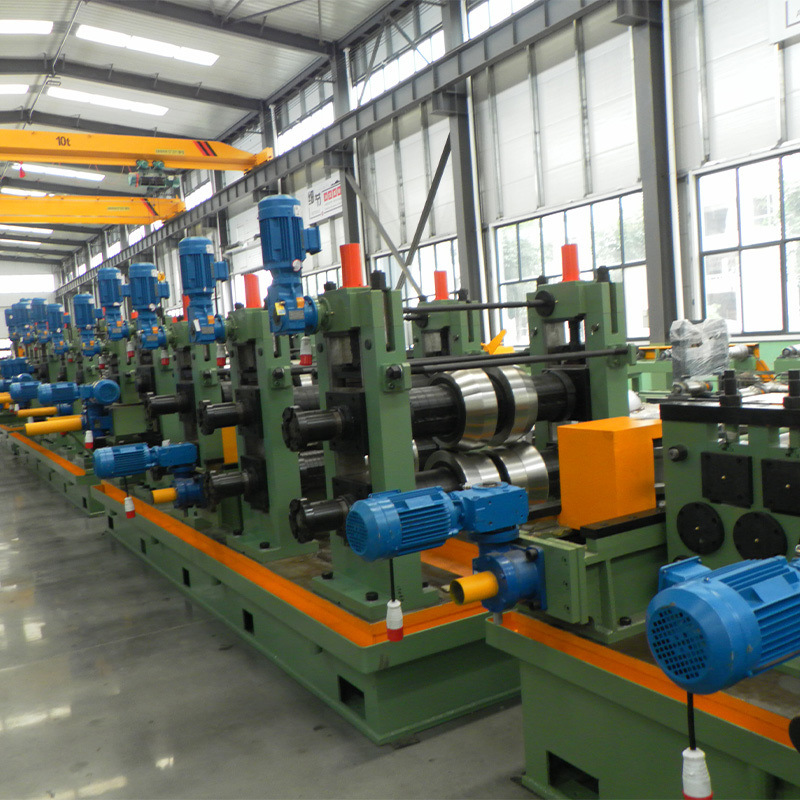

Tube Mill Machine Images
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
