60X60mm Automatic Steel Welded Square Tube Mill

Name: 60X60mm Automatic Steel Welded Square Tube Mill
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 60 x 60
Price: 50,000.00 USD
Availability: InStock

Detalles del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	TENGTIAN
Certificación:	CE ISO9000 BV
Número de modelo:	60 x 60

Información Detallada

Lugar de origen:

PORCELANA

Nombre de la marca:

TENGTIAN

Certificación:

CE ISO9000 BV

Número de modelo:

60 x 60

Nombre de producción:

Molino de tubo cuadrado de acero automático de 60x60 mm

Modelo:

60x60

Característica:

Manual o automático

Otra tubería:

tubería redonda, cuadrada y rectangular

Tamaño máximo:

60x60 mm

Espesor:

0. 5 - 4. 0 mm

Longitud:

6 m - 12 m

Rodillos:

Incluir

Garantía:

Un año

Palabras clave:

Molino de tubo cuadrado soldado de acero automático

Resaltar:

High Light

Resaltar:

automatic steel square tube mill

60x60mm welded tube mill

square tube mill with warranty

Información Comercial

Cantidad de orden mínima:

1 set

Precio:

$100000 to $1 million

Detalles de empaquetado:

Paquete de exportación estándar

Tiempo de entrega:

60 días hábiles

Condiciones de pago:

L/C, D/A, D/P, T/T

Capacidad de la fuente:

6 sistemas/años

Descripción del Producto

60X60mm Automatic Steel Welded Square Tube Mill

Product Specifications

Attribute	Value
Production Name	Manual Or Automatic 60X60Mm Steel Welded Pipe Production Line Square Tube Mill Machine
Model	60X60
Feature	Manual Or Automatic
Other pipe	Round, square and rectangular pipe
Max size	60X60 mm
Thickness	0.5 - 4.0 mm
Length	6 m - 12 m
Rollers	Include
Warranty	One year

Product Overview

This high frequency straight welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions for pipe production.

Available Pipe Sizes

Square pipe: 20X20-60X60mm
Rectangular pipe: 20X25-40X80mm
Pipe thickness: 0.5-4.0mm

Technical Specifications

Material Specifications

Material	Low carbon steel, galvanized and carbon steel tube
Mechanical properties	σb≤520Mpa, σs≤340MPa
Strip width	80 - 240 mm
Strip thickness	0.5 - 4.0 mm
I.D of Coils	508 mm
O.D of Coils	1800 mm
Coil Weight	≤ 3T

Welded Pipe Specifications

Pipe Diameter	20X20～60X60 mm
Pipe thickness	1.0 - 3.0 mm
Finish pipe length	6 m
Cut length accuracy	± 2 mm
Forming speed	40 - 100 m/min

Workspace Requirements

100 m X 8 m, at least 5m high

Note: Can be modified according to actual workshop length

Production Process Flow

Coil preparation
Coiling
Uncoiling
Head removal
Leveling
Cutting butt welding
Looper storage
Vertical roller alignment
Delivery
Vertical roller alignment
Forming (13 frames)
High frequency welding
Five rollers extrusion
External burr removal
Smoothing roller
Water cooling device
Sizing machine
Saw cutting
Roller table after sawing
Steel pipe conveying
Collecting and packing

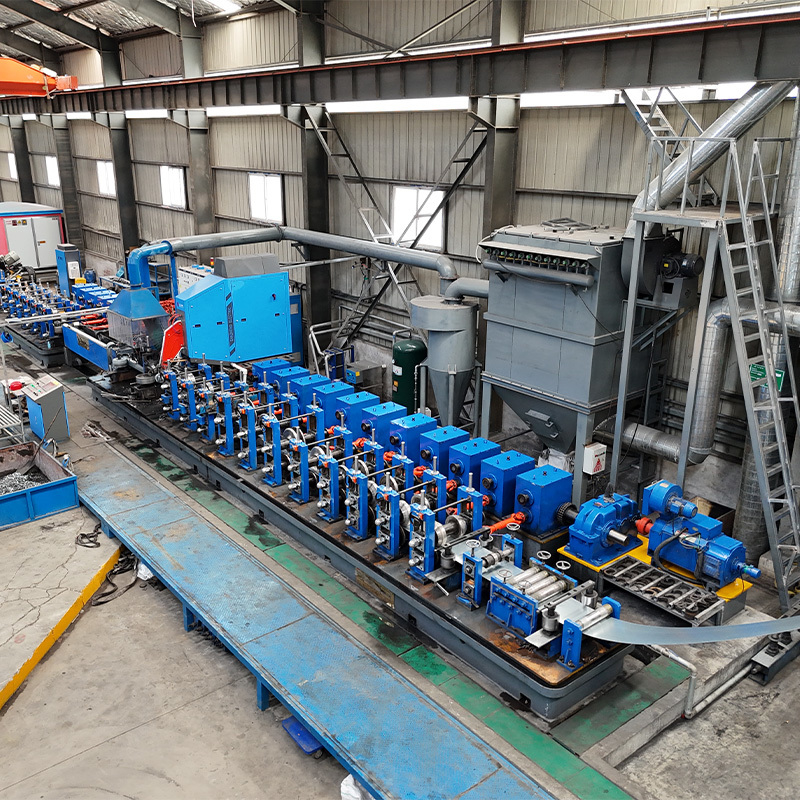

60X60mm Automatic Steel Welded Square Tube Mill 1

Factory Photos

60X60mm Automatic Steel Welded Square Tube Mill 5

60X60mm Automatic Steel Welded Square Tube Mill 6

60X60mm Automatic Steel Welded Square Tube Mill 7

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping

60X60mm Automatic Steel Welded Square Tube Mill 10

FAQ:

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
